Samson

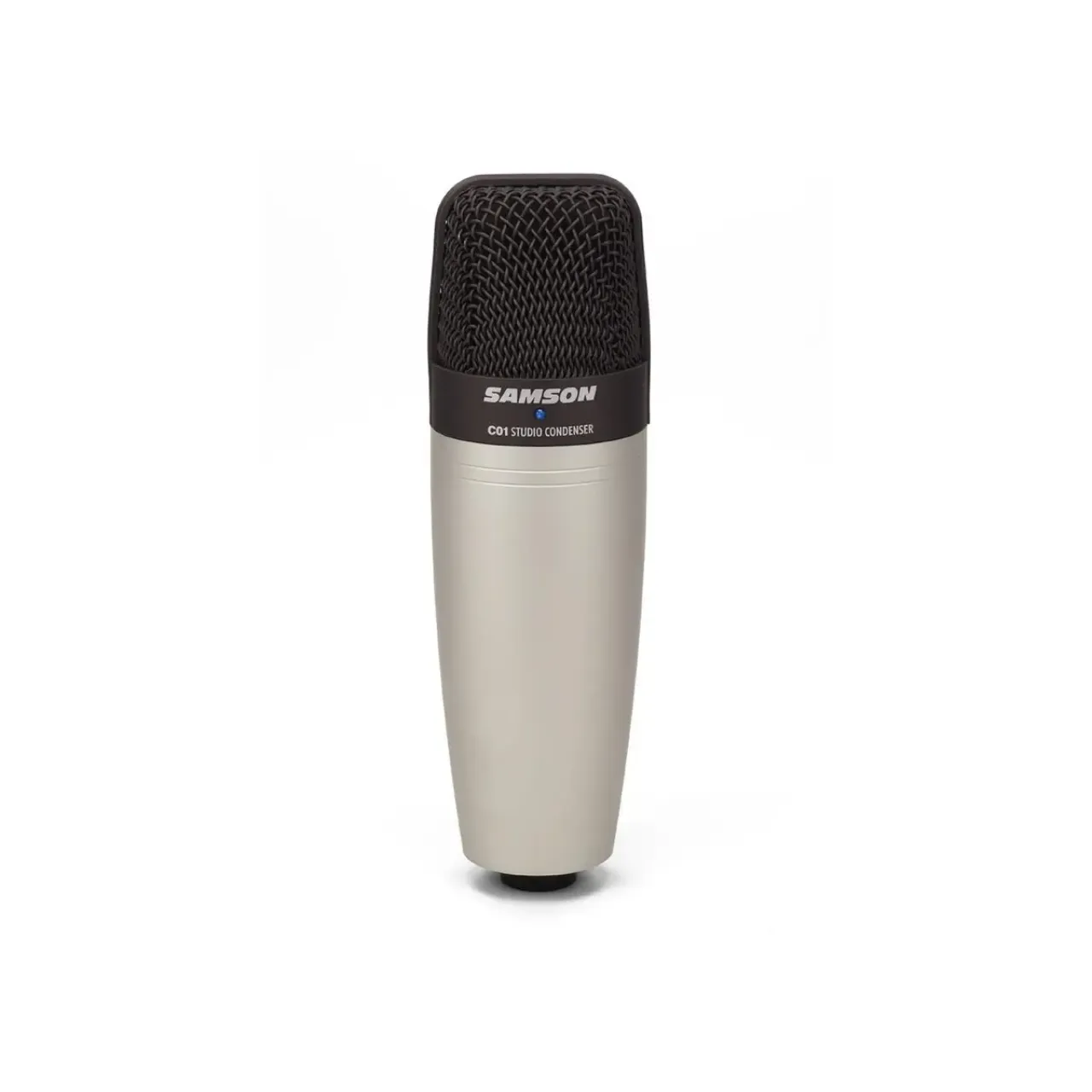

The Samson C01 is an affordable, large-diaphragm studio condenser microphone designed for home studio recording, voice-overs, acoustic instruments, and podcasting. It is celebrated for delivering high-quality audio capture at an entry-level price point, making professional-grade recording accessible to a wider audience. Unlike its USB counterparts, the C01 is a traditional studio microphone that connects via an XLR cable and requires +48V phantom power.

Key Features

• Large 19mm Diaphragm: Ensures a smooth, extended frequency response and detailed audio capture.
• Hypercardioid Pickup Pattern: Provides excellent off-axis sound rejection, focusing on the sound source directly in front of the mic and minimizing background noise and feedback.
• Heavy-Duty Construction: Features a solid die-cast metal body and a robust mesh grille for enhanced durability.
• Gold-Plated XLR Connector: Guarantees a secure and high-quality signal connection.
• Swivel Stand Mount: Included for easy positioning on any standard microphone stand.

Technical Specifications

Frequency Response

The frequency response of the C01 is relatively flat through the mid-range with a noticeable presence peak in the upper frequencies (around 10kHz). This contributes to vocal clarity and adds a sense of "air" to recordings, helping them cut through a mix.

Polar Pattern

The hypercardioid pattern is tighter and more directional than a standard cardioid pattern. As shown in the diagram, it is most sensitive to sound arriving from directly in front of the capsule, with strong rejection from the sides (at 120°) and good rejection from the rear.
